- Reduce implementation risk with validated, factory-integrated DIGISTOR SSDs
- Rugged all-metal construction rated for 30,000 insertions
- Industry standard for government agencies, other mission-critical applications

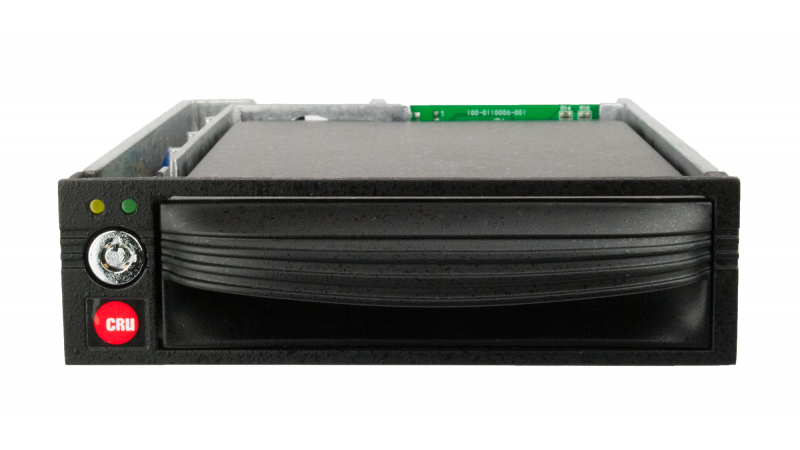

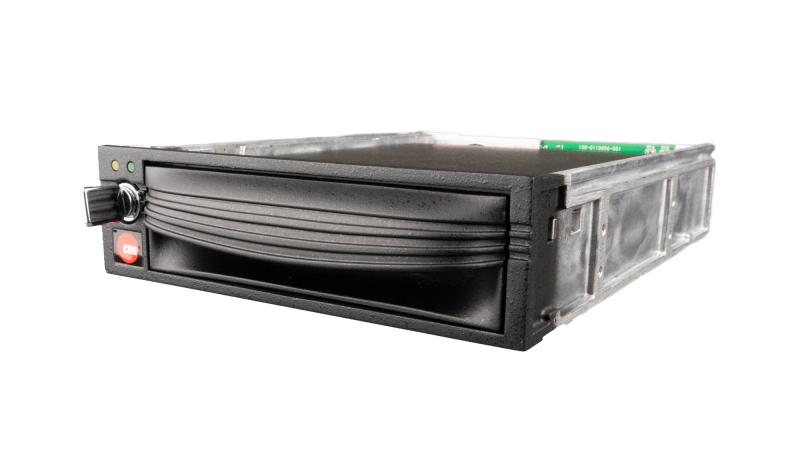

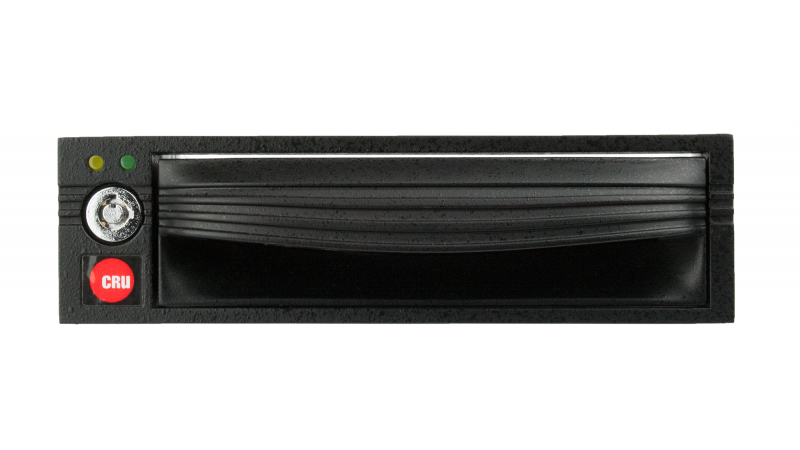

Now featuring factory-integrated DIGISTOR SSDs, the rugged DP10 is the choice of OEMs such as Dell and HP, as well as military and government agencies for physical data security and transport. The SATA 6G-based DP10 fits into 5.25-inch drive bays
PRODUCT INFORMATION
Technical Specs
| Part Number | 8440-6502-0500 |
| Product Name | DP10 |
| SATA Bus Speed | 6G |
| Host (I/O) Ports | (1) SATA: up to 6 Gbps (1) SAS (single-port): up to 6 Gbps |
| Drive Types Supported | DIGISTOR factory-integrated storage SATA 2.5" drives SATA 3.5" drives SATA SSD (solid state drives) SAS 2.5" drives SAS 3.5" drives |
| Host Bay Size | 5.25in |
| Compatible Drive Type | up to two (2) 2.5-inch or 3.5-inch SATA drives (Note: Drives with the Power Disable feature are not supported) |
| Insertion Rating | up to 30,000 carrier insertions |
| Number of bays | 1 |
| Lockable Bays | Yes |
| Number of LEDs | 2 |
| Description of LEDs | Power, drive activity |
| LEDs on each bay | Power and drive access |
| Construction material(s) | Rugged all-metal construction |

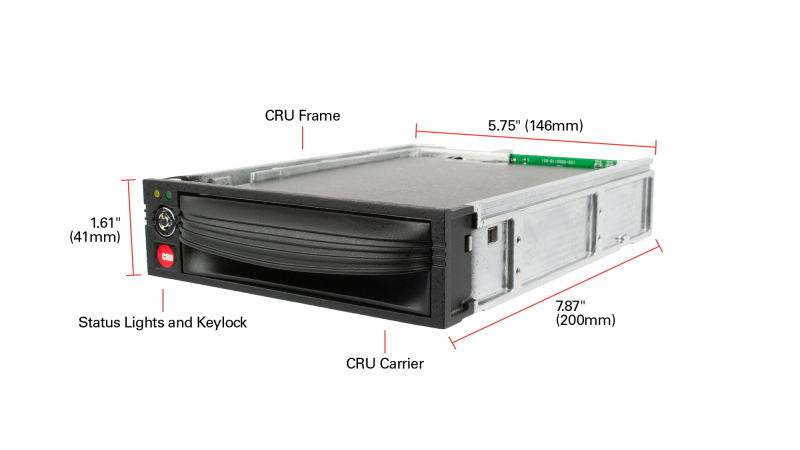

| Dimensions | 7.87" x 5.75" x 1.61" (200mm x 146mm x 41mm) |
| Weight | 1.80 lbs. (0.82 kg) |
| Compliance | FCC, CE, RoHS, C-Tick, RCM, TAA |
| Warranty | CDSG provides a 5-year limited warranty for this product. |
| Technical Support | Your investment our product is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit our website. |
Resources & Documents
Apr 10, 2018 - 535.99 KB
Product Description
Government agencies, digital cinemas, and SMB organizations that need robust, high-quality removable drive enclosures to store, transport, and protect their sensitive data rely on the CRU DataPort® 10 SAS/SATA 6G.

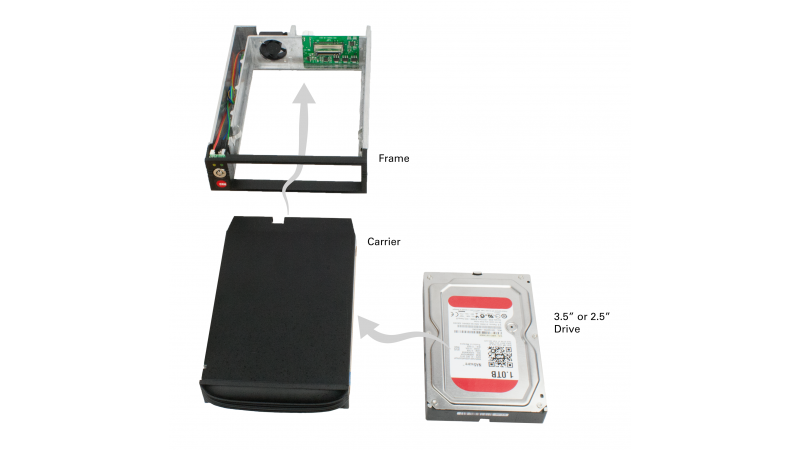

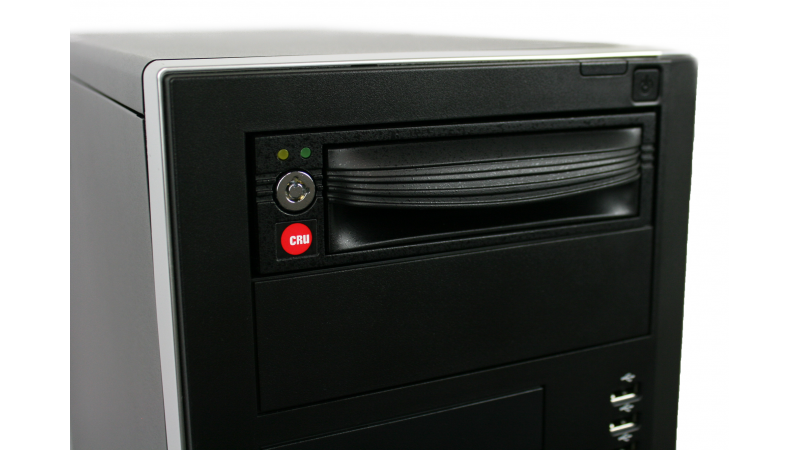

Frames mount in most computer bays (PC and MAC), and its simple design makes swapping drives easy for additional storage.

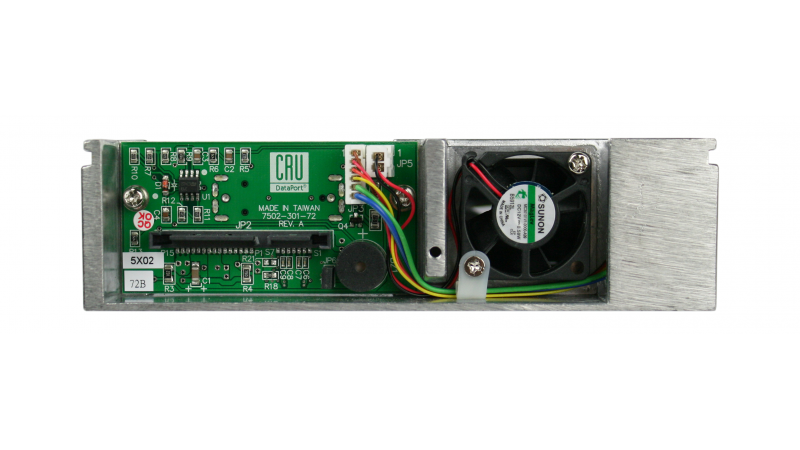

The DataPort 10 6G aluminum carriers and frames dissipate heat while ensuring the safety of your data. Each carrier is equipped with CRU’s patented Temperature Controlled Cooling System (TCCS™), and an audible alarm will notify you if the drives begin to overheat so that you can prevent data loss or drive malfunction/damage.
The DataPort 10 6G supports 6 Gbps and is backwards compatible to 3 Gbps hosts and hard drives. LEDs display power/drive activity for SATA/SAS drives.

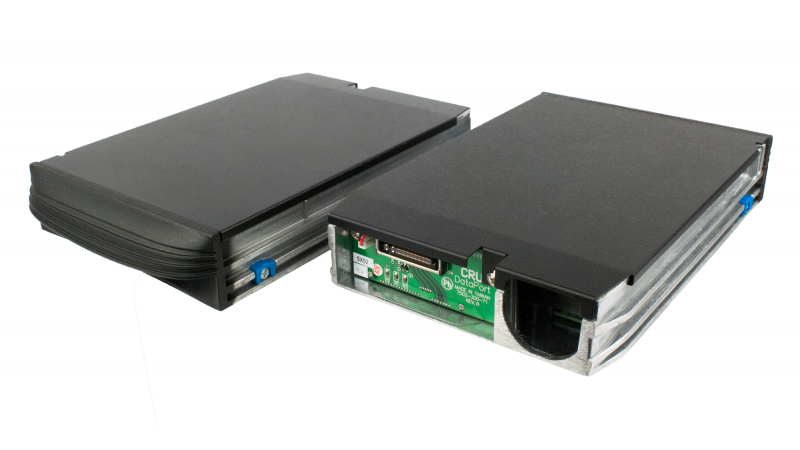

The DataPort 10 6G carrier and frame is engineered and warranted for over 30,000 insertions using durable Hirose connectors. Frames are mounted with recessed connectors to protect the host connections.
Additional features:- Drive connection with internal cableless design
- Hot swappable
- 3.5" SATA or SAS hard disk drive chassis
- Legacy to SATA power adapter cable
- Ultra-quiet Vapo Bearing MagLev (Magnetic Levitation System) cooling fan
- Audible fan failure alarm
- 5-year warranty
- Balanced impedance
- Free lifetime phone tech support
The DataPort 10 SAS/SATA 6G removable drive carriers and frames will provide you with reliable performance while protecting your data.
Included Items:- Screws for installation
- 4-pin to 15-pin power adapter
- Set of 2 keys
Products and Accessories

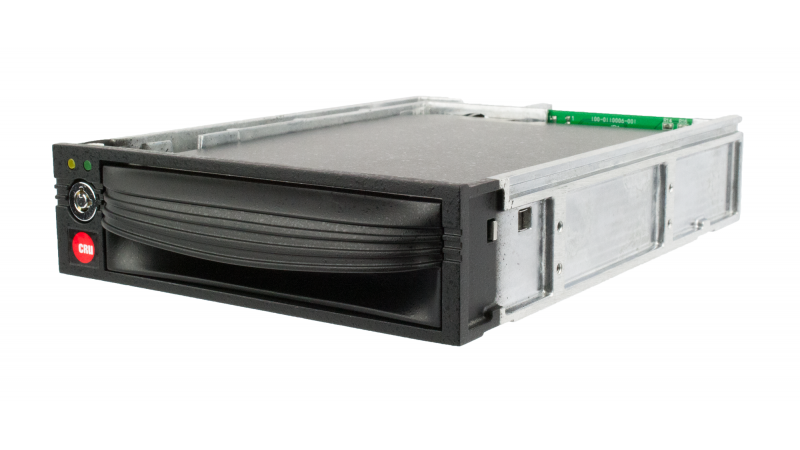

DP10 SAS/SATA 6G Complete Assembly
SAS/SATA 6 Gbps host connection; with carrier for 3.5in SATA or single-port SAS drives
| Black with silver lock | |
| part #: 8440-6502-0500 | Ships in: 1-2 Days |
| Black; latch version |
| part #: 8440-6503-0500 |
DIGISTOR DP10 Removable Storage Module
Removable solid state storage, compatible with DP10 receiving frames, TAA Compliant
| 256GB |
| part #: DP10-SSD22564 |
| 512GB |
| part #: DP10-SSD25124 |
| 1TB |
| part #: DP10-SSD210004 |
| 2TB |
| part #: DP10-SSD220004 |
| FIPS 140-2 L2 certified encryption, 256GB |
| part #: DP10-SSD22566 |
| FIPS 140-2 L2 certified encryption, 512GB |
| part #: DP10-SSD25126 |
| FIPS 140-2 L2 certified encryption, 1TB |
| part #: DP10-SSD210006 |
| FIPS 140-2 L2 certified encryption, 2TB |
| part #: DP10-SSD220006 |

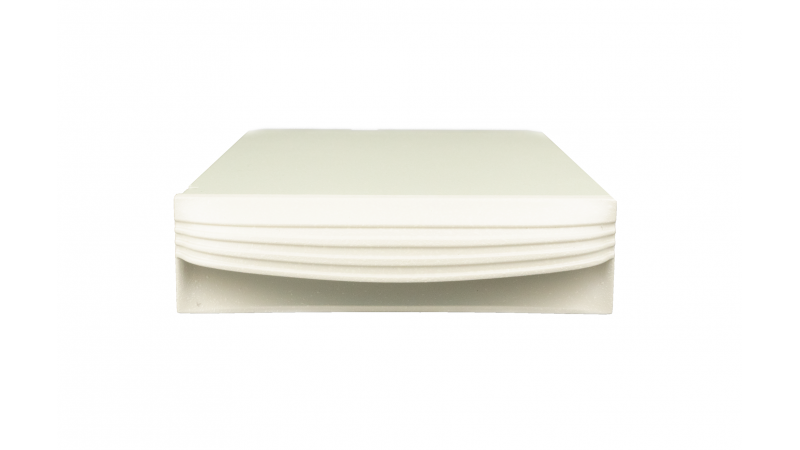

Empty drive carrier for DP10 SAS/SATA 3G/6G
Accepts 3.5in SATA or single-port SAS drives
| White/beige |
| part #: 8441-7139-0000 |
| Populated with 4TB SATA drive; formatted NTFS (for Windows); black | |
| part #: 8441-7174-0500 | Ships in: 3-5 Days |

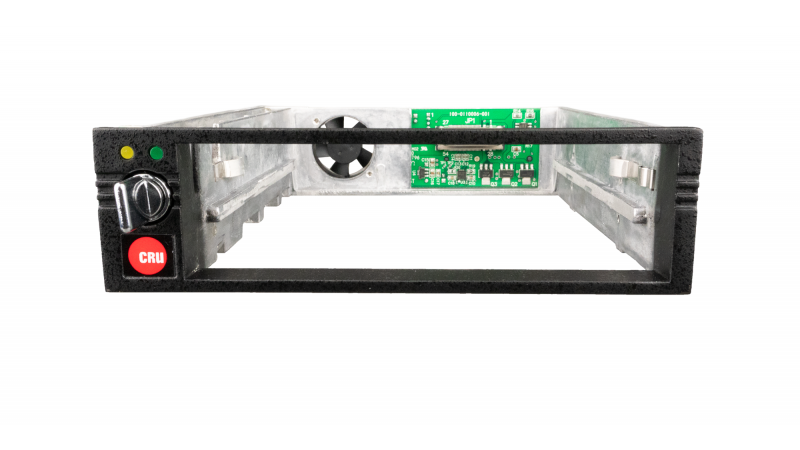

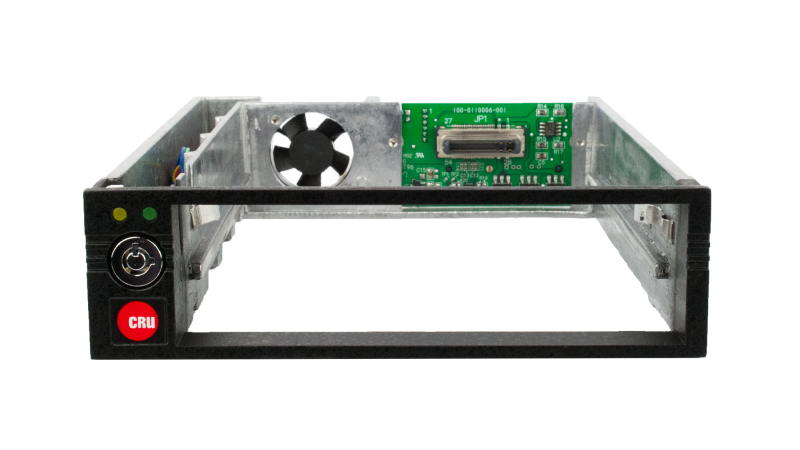

DP10 SAS/SATA 6G Frame Only
SAS/SATA 6 Gbps host connection
| Black with silver lock | |
| part #: 8442-6502-0500 | Ships in: 1-2 Days |
| Black; latch version |
| part #: 8442-6503-0500 |
Replacement cooling fan for DP10
| 12V; MagLev; 3cm; Low Hal | part #: 4100-300-03 |
Accessories
Extra Keys, 506 type
For all DataPort models
| 10-pack | |
| part #: 2400-001-14 | Ships in: 1-2 Days |
Keylock assembly for DP10
12.5mm switch lock assembly
| Silver; with keys | |
| part #: 2400-101-01 | Ships in: 3-5 Days |
Replacement cooling fan for DP10
| 12V; MagLev; 3cm; Low Hal |
| part #: 4100-300-03 |
Latch assembly for DP10
| Silver, single | |
| part #: 2400-101-11 | Ships in: 3-5 Days |
| Silver, 10-pack |
| part #: 2400-2000-00 |
