DP10 Secure
- Hardware-based, military-grade encryption
- Encryption key security
- Rugged aluminum construction
- Multiple connection types
- Drive activity LEDs
The DP10 Secure is a rugged and reliable removable drive for data security, transport, and backup. It offers the additional security of 256-bit hardware-based encryption.
PRODUCT INFORMATION
Technical Specs
| Part Number | 8450-5942-0500 |
| Product Name | DP10 Secure |
| SATA Bus Speed | 1.5G |
| Host (I/O) Ports | (1) SATA: up to 1.5 Gbps |
| Drive Types Supported | SATA 2.5" drives SATA 3.5" drives SATA SSD (solid state drives) |
| Host Bay Size | 5.25in |
| Insertion Rating | up to 30,000 carrier insertions |
| Number of bays | 1 |
| Lockable Bays | Yes |
| Number of LEDs | 4 |
| Description of LEDs | Power, drive activity, encryption key valid/invalid |
| LEDs on each bay | Power, drive access, encryption key valid, encryption key invalid |
| Encryption | Advanced Encryption Standard (AES) 256-bit |
| FIPS Validated | Yes |
| FIPS Description | Validated to FIPS 140-2 (certificate number 1471) |
| Construction material(s) | Rugged all-metal construction |

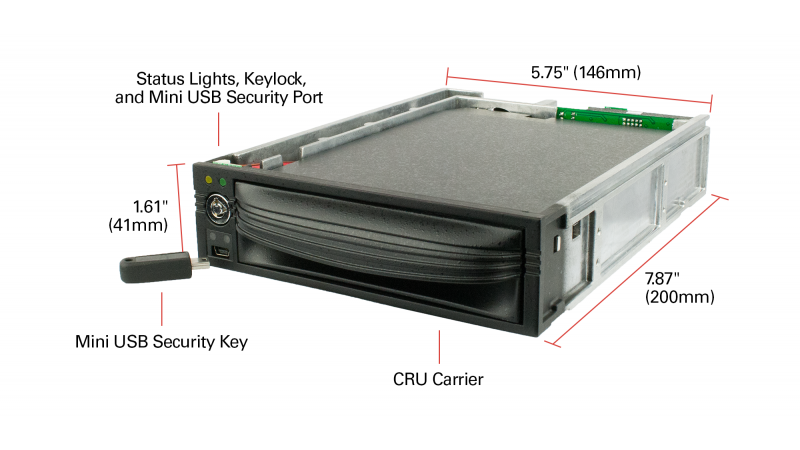

| Dimensions | 7.87" x 5.75" x 1.61" (200mm x 146mm x 41mm) |
| Weight | 1.80 lbs. (0.82 kg) |
| Compliance | FCC, CE, RoHS, TAA |
| Warranty | CDSG provides a 3-year limited warranty for this product. |
| Technical Support | Your investment our product is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit our website. |
Resources & Documents
Nov 22, 2013 - 755.32 KB
Nov 22, 2013 - 527.49 KB
Jul 9, 2014 - 10.35 MB
Product Description
Government agencies, digital cinemas, and SMB organizations that need secure, high-quality carriers and frames to store, transport, and protect their sensitive data rely on the CRU DataPort® 10 Secure 256-bit with Internal Key.
The DataPort 10 Secure includes hardware-based AES 256-bit encryption that offers affordable, military-grade removable drive enclosures. All data are encrypted/decrypted automatically and transparently using a dedicated hardware processor, delivering high performance without compromising convenience.

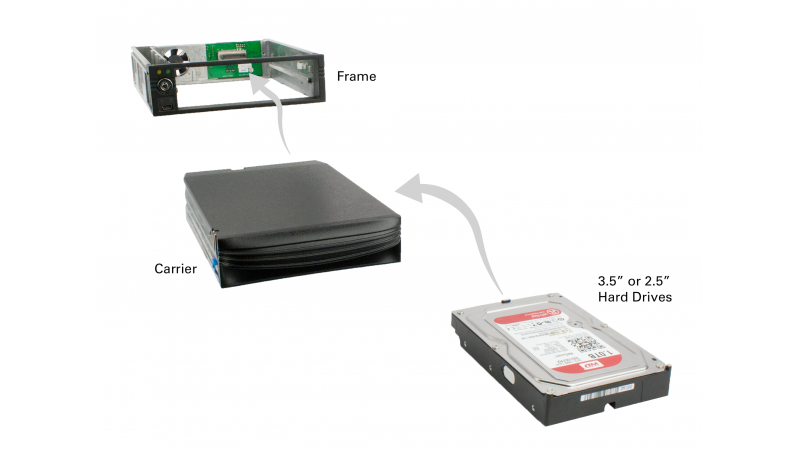

Physical encryption keys are mounted to the back of the frames and secured into the host computer, eliminating the need for key or password management. When you remove a hard drive you can store it or transport it secure in the knowledge that it's fully protected against prying eyes. In order to access the data, the carrier must be reinserted into its original frame or one in another computer/enclosure with a matching encryption key.
Frames with matching keys can be installed in computers across multiple locations so that drives can be transported between them without risk of being compromised en route.

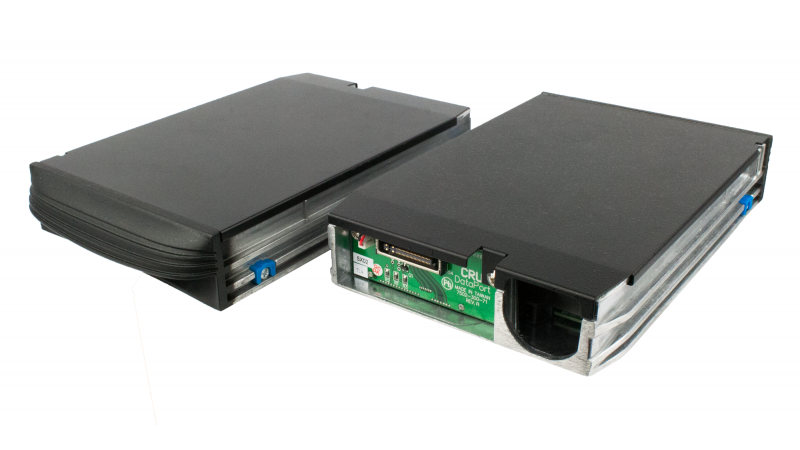

DP10 aluminum frames and carriers dissipate heat to keep drives cool during operation, and offer durable protection during transport. Each carrier is equipped with CRU’s patented Temperature Controlled Cooling System (TCCS™), and an audible alarm will notify you if the drives begin to overheat so that you can prevent data loss or drive malfunction/damage.

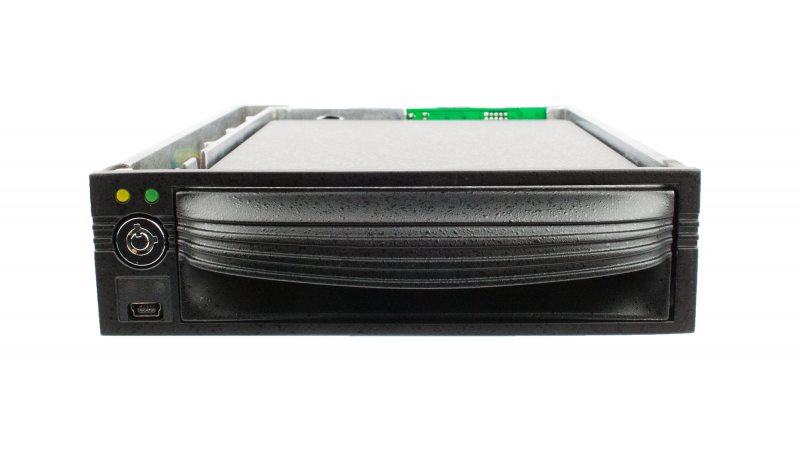

After you power on your drive with the keylock, LEDs will notify you of power, drive, encryption key errors, and encryption activity.
Additional features:- FIPS 140-2 (certification number 1471) encryption validation

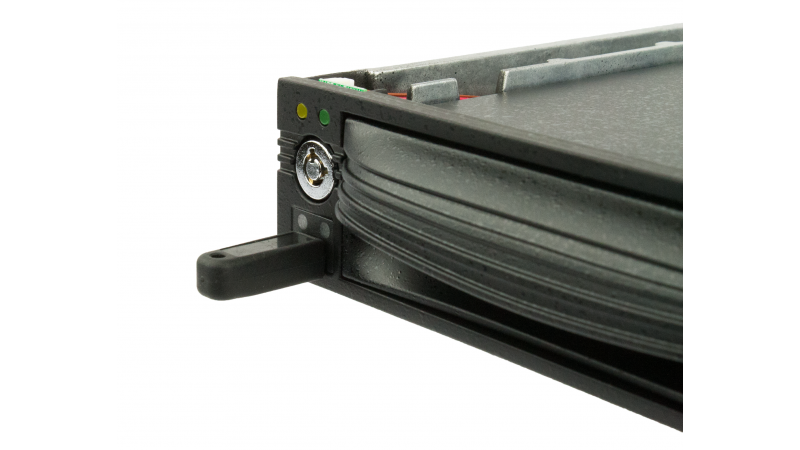

- Mini-USB security key port on face of receiving frame
- SATA 3.5” hard drive chassis
- High durability connectors rated for over 30,000 insertions

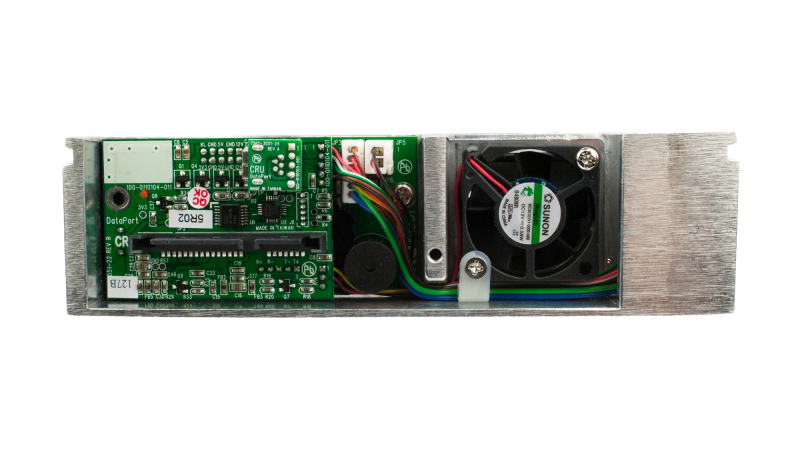

- Ultra-quiet Vapo Bearing MagLev (Magnetic Levitation System) cooling fan
- 3-year warranty
- Free lifetime phone tech support
- Screws for installation
- 4-pin to 15-pin power adapter
- Set of 2 keys for keylock
- Set of 3 matching programmed encryption keys (one pre-installed in back of frame)
Related Products
Products and Accessories
DP10 Secure Complete Assembly
SATA host connection; AES 256-bit encryption; for SATA drives
| Black; Lock; encryption keys included |
| part #: 8450-5943-0500 |
| Black; Lock; encryption keys not included |
| part #: 8450-5942-0500 |
| Black; Latch; encryption keys included |
| part #: 8450-5947-0500 |
| Black; Latch; encryption keys not included |
| part #: 8450-5946-0500 |
Empty drive carrier for DP10 SAS/SATA 3G/6G
Accepts 3.5in SATA or single-port SAS drives
| Black | |
| part #: 8441-7139-0500 | Ships in: 1-2 Days |
DP10 Secure Frame Only
SATA host connection; AES 256-bit encryption
| Black; with keys | |
| part #: 8452-5943-0500 | Ships in: 3-5 Days |
| Black; no encryption keys |
| part #: 8452-5942-0500 |
Accessories
Programmed Encryption Keys
Mini-USB2 form factor; with lanyards
| 3 pack | |
| part #: 2406-0000-01 | Ships in: 1-2 Days |
| 4 pack | |
| part #: 2406-0000-10 | Ships in: 1-2 Days |
| 6 pack | |
| part #: 2406-0000-11 | Ships in: 1-2 Days |
Extra Keys, 506 type
For all DataPort models
| 10-pack | |
| part #: 2400-001-14 | Ships in: 1-2 Days |
Keylock assembly for DP10
12.5mm switch lock assembly
| Silver; with keys | |
| part #: 2400-101-01 | Ships in: 3-5 Days |
Replacement cooling fan for DP10
| 12V; MagLev; 3cm; Low Hal |
| part #: 4100-300-03 |
