DE50 SAS/SATA 6G
- Excellent data integrity
- Rugged construction
- Fast transfer rates
The DE50 is a rugged and reliable removable drive for data security, transport, and backup. Its removable mounting bracket allows for use in either 5.25" or 3.5" drive bays.
PRODUCT INFORMATION
Technical Specs
| Part Number | 6416-6500-0500 |
| Product Name | DE50 SAS/SATA 6G |
| SATA Bus Speed | 6G |
| Host (I/O) Ports | (1) SAS/SATA: Up to 6 Gbps |
| Drive Types Supported | SATA 2.5" drives SATA SSD (solid state drives) SAS 2.5" drives |
| Host Bay Size | 3.5in |
| Insertion Rating | up to 25,000 carrier insertions |
| Number of bays | 1 |
| Lockable Bays | Yes |
| Number of LEDs | 1 |
| Description of LEDs | Seven segment display with drive activity indicator |
| Construction material(s) | Durable metal and ABS construction |

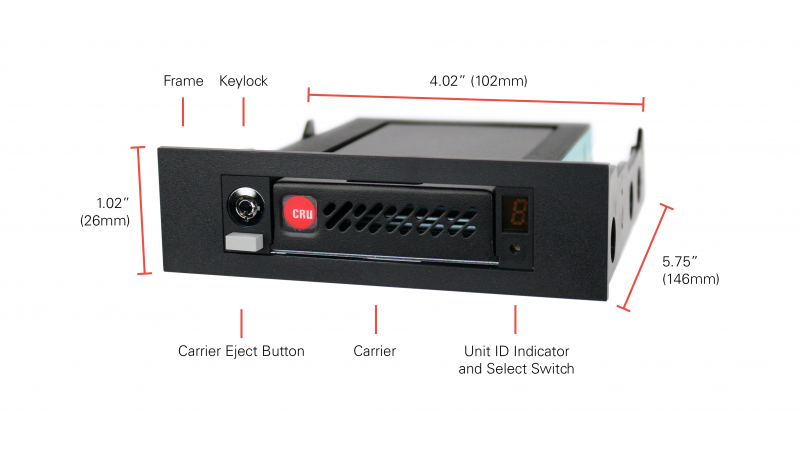

| Dimensions | 5.75" x 4.02" x 1.02" (146mm x 102mm x 26mm) |
| Weight | 1.60 lbs. (0.73 kg) |
| Compliance | FCC, CE, RoHS, TAA |
| Warranty | CDSG provides a 3-year limited warranty for this product. |
| Technical Support | Your investment our product is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit our website. |
Resources & Documents
Sep 26, 2014 - 317.48 KB
Product Description
Government agencies, digital cinemas, and SMB organizations that need a reliable and versatile removable drive enclosure to store, transport, and protect their sensitive data rely on the Data Express® DE50 SAS/SATA 6G carrier and frame. This removable enclosure receives any capacity 2.5-inch SAS or SATA 6 Gbps or 3 Gbps hard drive.
Soft start circuitry increases data integrity by eliminating in-rush current during hard drive spin-up.
Metal construction helps dissipate heat and ensure the safety of your drives.
The receiving frame offers 6 Gbps performance when used with a 6 Gbps drive and host configuration, but it is also compatible with 3 Gbps drives and hosts.
Additional features:- Power keylock
- Power and drive activity LEDs
- Interconnect rated for tens of thousands of insertions
- Fits standard 3.5-inch (floppy drive) or 5.25-inch perpheral bay
- Mounting hardware
- Connector alignment pins
- Unit ID number indicator
- 3-year warranty
- Free lifetime phone tech support
The DE50 SAS/SATA 6G removable drive carriers and frames will provide you with reliable performance while protecting your data.
Related Products
Products and Accessories

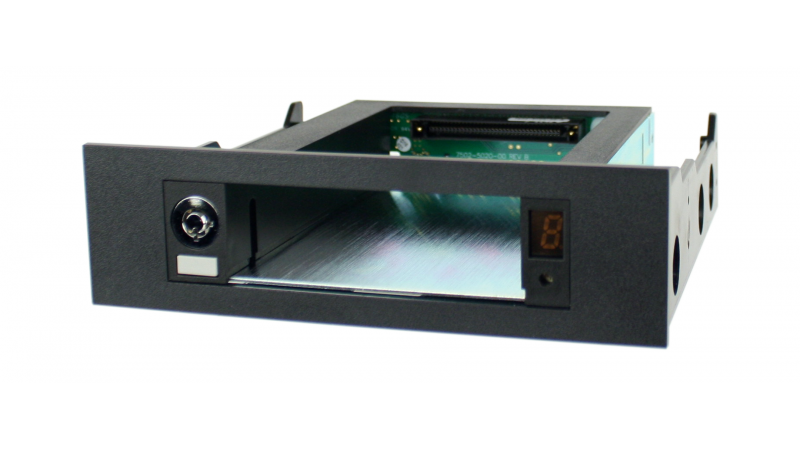

DE50 SAS/SATA 6G Frame Only
SATA 6.0 Gbps host connection; includes 5.25in bracket
| Black | |
| part #: 6418-6500-0500 | Ships in: 1-2 Days |
| Black; captive key | |
| part #: 6418-6501-0500 | Ships in: 3-5 Days |
| White | |
| part #: 6418-6500-0000 | Ships in: 3-5 Days |

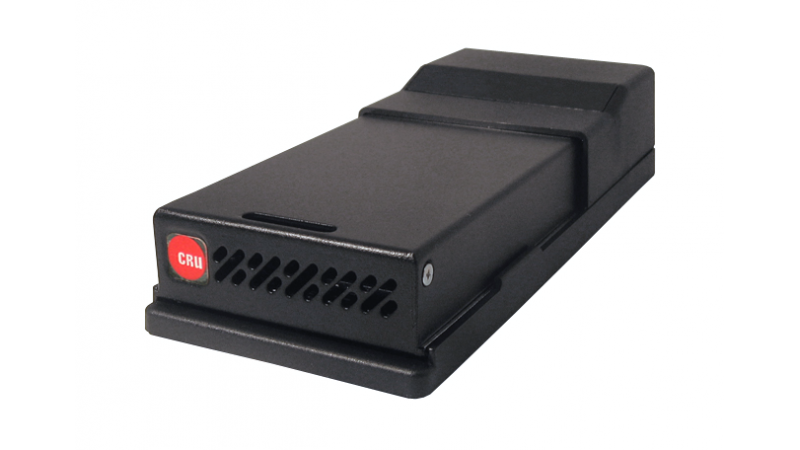

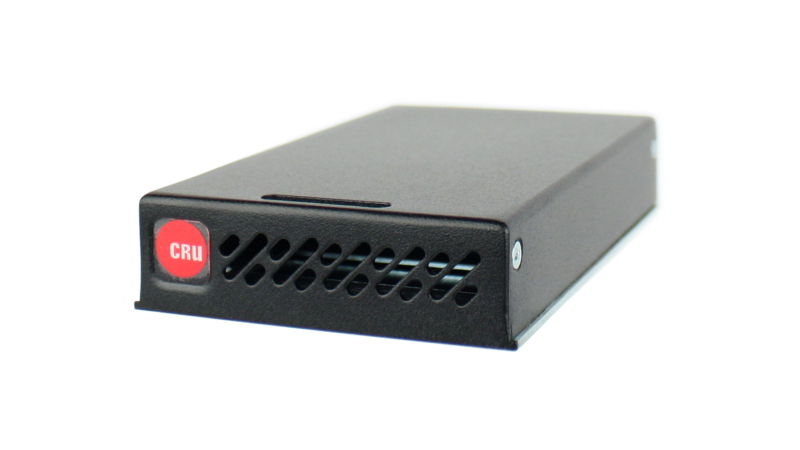

Carrier for DE50 SAS/SATA 6G
Accepts SAS or SATA hard drives; supports 6.0 Gbps
| Black | |
| part #: 6417-6500-0500 | Ships in: 1-2 Days |
| Black; handle |
| part #: 6417-6571-0500 |

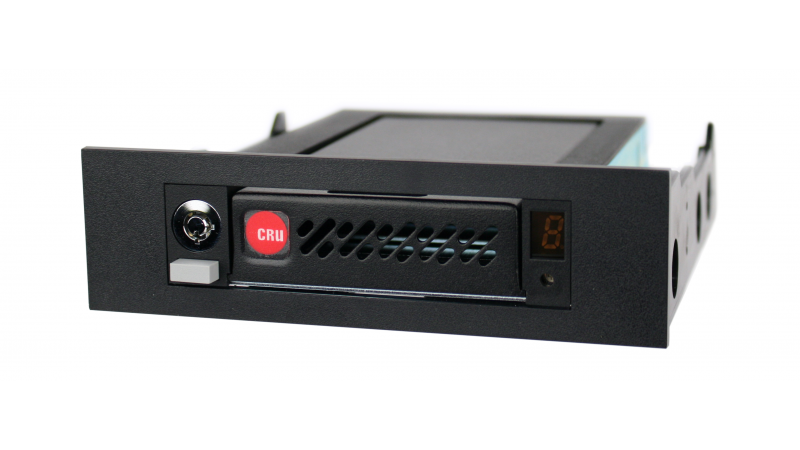

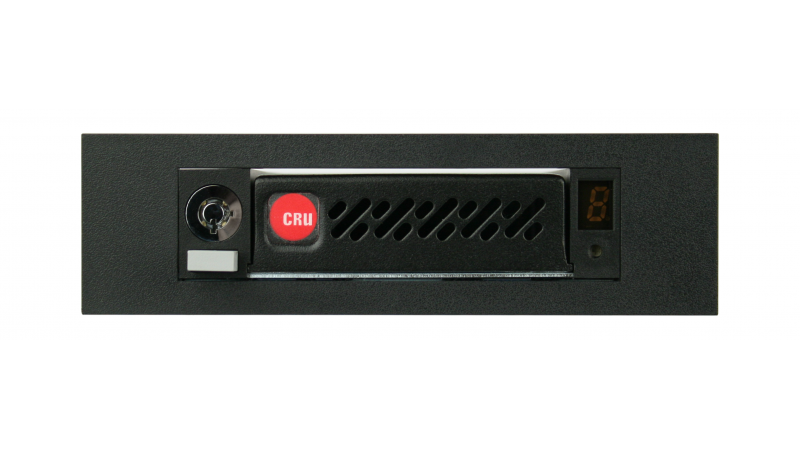

DE50 SAS/SATA 6G Complete Assembly
SATA 6.0 Gbps host connection; includes carrier for SAS or
SATA drives and 5.25in bracket
| Black | |
| part #: 6416-6500-0500 | Ships in: 1-2 Days |
| Black; captive key | |
| part #: 6416-6501-0500 | Ships in: 3-5 Days |
| White |
| part #: 6416-6500-0000 |
Accessories
Extra Keys, 2036 type
For Data Express and QX receiving frames with standard barrel locks
| 3-pack | |
| part #: A98-0000-1093 | Ships in: 1-2 Days |
