- Easy-to-use portable digital cinema storage
- Rugged aluminum for reliable transport
- Distribution cost savings
- DCmini HDD Compatibility List
The DCmini is a small hard drive enclosure for digital cinema distribution. It's easy to connect the DCmini with USB 3.0, or with an optional adapter (sold separately) to our popular DX115 DC frames.
PRODUCT INFORMATION
Technical Specs
| Part Number | 6601-6600-0500 |
| Product Name | DCmini |
| SATA Bus Speed | 6G |
| Host (I/O) Ports | (1) USB 3.0: up to 5 Gbps |
| Drive Types Supported | SATA 2.5" drives SATA SSD (solid state drives) |
| Compatible Drive Type | One (1) 2.5-inch SATA drive up to 9.5mm in height |
| Number of LEDs | 1 |
| Description of LEDs | Power, drive activity |
| Operating system compatibility | Windows XP or later Windows Server 2003 or later Mac OS 10.7 or newer Most modern Linux distributions |
| Construction material(s) | Aluminum alloy case |
| Bus power | Yes |
| Dimensions | 5.20" x 3.07" x 0.71" (132mm x 78mm x 18mm) |
| Weight | P0.30 lbs. (0.14 kg) |
| Populated Weight | 0.45 lbs. (0.20 kg) |
| Kensington Slot | Yes |
| Compliance | FCC, CE, RoHS, C-Tick, RCM, TAA |
| Warranty | CDSG provides a 2-year limited warranty for this product. |
| Technical Support | Your investment our product is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit our website.. |
Resources & Documents
Nov 22, 2013 - 426.08 KB
Nov 22, 2013 - 426.52 KB
Oct 23, 2014 - 43.38 KB
Sep 14, 2018 - 766.07 KB
Product Description
If you need to store and move digital cinema content, then the CRU® DCmini is a popular choice. With its rugged aluminum construction and small size, the DCmini is a reliable and easy way to transport digital content. The DCmini’s compact size also saves distributors on transportation and packaging costs.
Designed specifically for digital cinema media on 2.5” drives, the DCmini offers a fast USB 3.0 connection (backwards compatible with USB 2.0) for quick external connection to any workstation. It does not require a CRU DC MoveDock host to operate. The DCmini can also be docked using a DCmini Adapter (sold separately) to the CRU DX115DC frame in servers or ingestion racks using a high-speed SATA connection.
Additional features:- Data storage up to 1 TB (and beyond) with a 2.5-inch hard drive or SSD (up to 9.5mm height)
- Compatible with most 2.5-inch, 9.5mm HDDs. DCmini HDD Compatibility List.
- Bus powered -- no AC adapter required
- Free US-based customer support
Related Products
Protect your DCmini during shipment while reducing distribution costs.
Learn More>Products and Accessories
DCmini Cartridge
Accepts 2.5in SATA drive; USB 3.0 or use with adapter to insert into DX115DC fame
| Black | |
| part #: 6601-6600-0500 | Ships in: 1-2 Days |

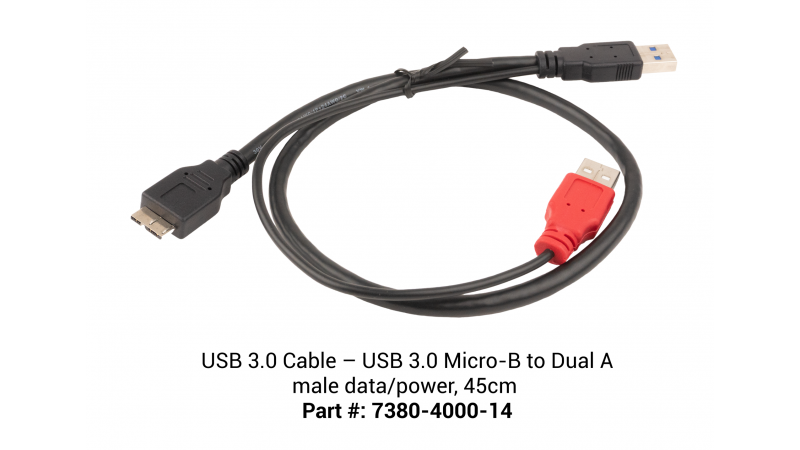

USB 3.0 Cable
| USB 3.0 Micro-B to Dual A male Data/Power Cable, 45cm | |
| part #: 7380-4000-14 | Ships in: 1-2 Days |

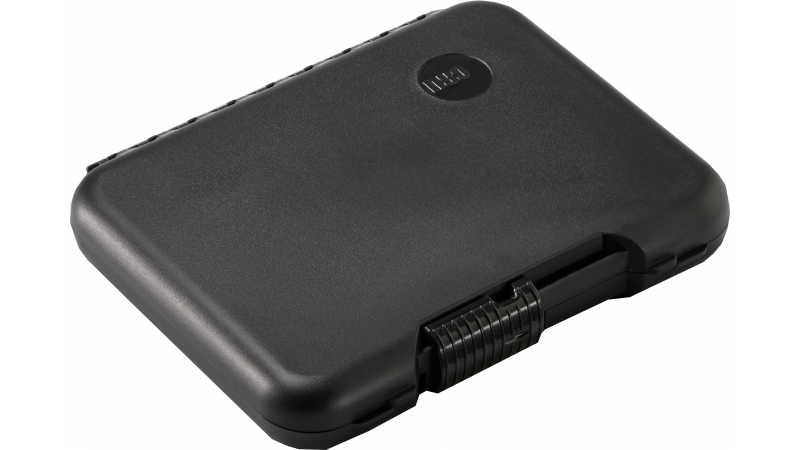

Mini Drive Shipping Case
Protective plastic case w/foam insert; for DC Mini cartridge or TTm3 + cable; black
| Single | |
| part #: 3851-6650-00 | Ships in: 1-2 Days |
