  • All-in-one solution for DCP distribution
  • Shipping case with custom cut, special density foam
  • Offered with or without pre-formatted disk drive

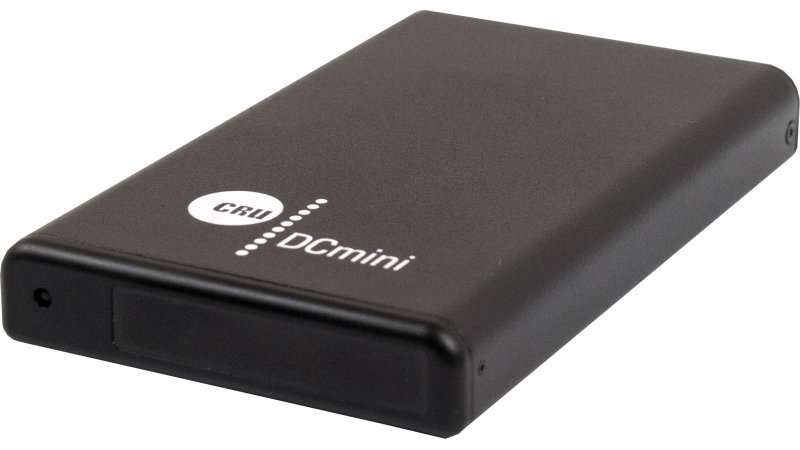

The DCmini Kit is a small hard drive enclosure for digital cinema distribution, as well as a rugged shipping case. With the DCmini it's easy to connect the DCmini via USB 3.0, or with an optional adapter (sold separately) to our popular DX115 DC frames.

PRODUCT INFORMATION

Technical Specs

Part Number 31330-6600-0000
Product Name DCmini Kits
SATA Bus Speed 6G
Host (I/O) Ports (1) USB 3.0: up to 5 Gbps
Drive Types Supported SATA 2.5" drives
SATA SSD (solid state drives)
Compatible Drive Type One (1) 2.5-inch SATA drive up to 9.5mm in height
Number of LEDs 1
Description of LEDs Power, drive activity
Operating system compatibility Windows XP or later Windows Server 2003 or later Mac OS 10.7 or newer Most modern Linux distributions
Construction material(s) Aluminum alloy case
Bus power Yes
Dimensions 7.09" x 5.91" x 1.10" (180mm x 150mm x 28mm)
Weight 0.70 lbs. (0.32 kg)
Populated Weight 1.00 lbs. (0.45 kg)
Kensington Slot Yes
Compliance FCC, CE, RoHS, C-Tick, RCM, TAA
Warranty CDSG provides a 2-year limited warranty for this product.
Technical Support Your investment our product is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit our website.
Product Description

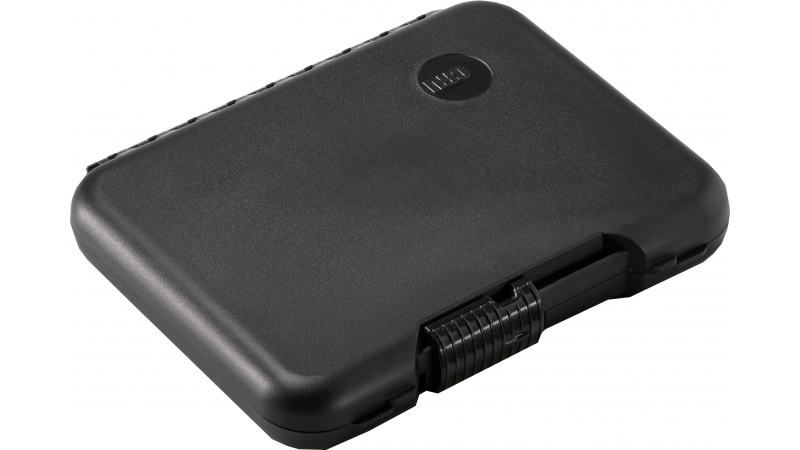

The new CRU DCmini Kit provides a more complete solution for our Digital Cinema customers. All DCmini Kits are offered with or without a disk drive. When drives are included, they are pre-formatted with EXT3 per ISDCF specifications. Our custom made, hard plastic shipping case has custom designed foam and has undergone extensive drop testing to ensure it exceeds industry standards.

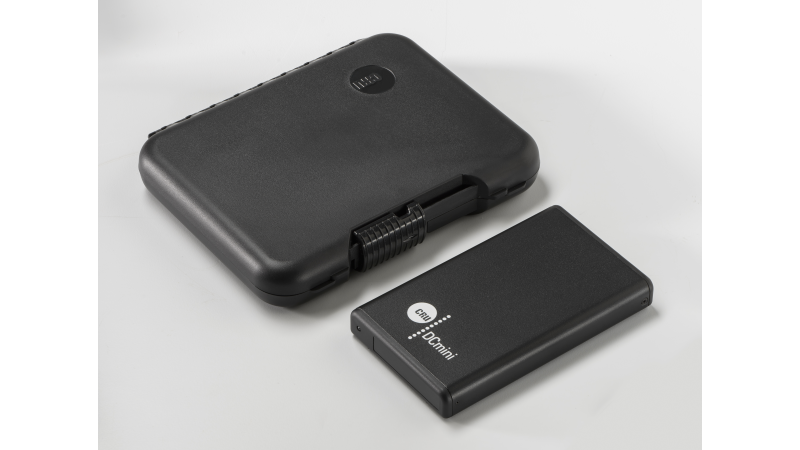

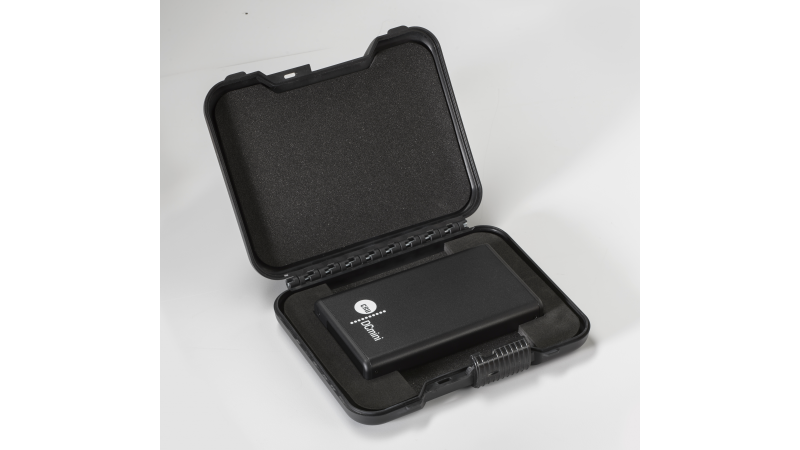

The DCmini Kit includes the DCmini Cartridge, USB 3.0 Cable and Custom Shipping Case.

  • CRU provides a 2-year limited warranty for the DCmini Cartrdige
  • CRU provides a 2-year limited warranty for the HDD (if included)
  • CRU provides a Life Time limited warranty for the Shipping Case
Products and Accessories

DCmini Kit
Includes DCmini Cartridge, USB 3.0 cable, and shipping case w/ custom foam

0TB (no HDD--accepts 2.5in SATA drive)
part #: 31330-6600-0000 Ships in: 1-2 Days
500GB 5400RPM HDD (EXT3 format)
part #: 31330-6600-0001
1TB 5400RPM HDD (EXT3 format)
part #: 31330-6600-0002 Ships in: 3-5 Days
