DE50 IDE
- Excellent data integrity
- Rugged construction
- High-performance connectors
The DE50 is a rugged and reliable removable drive for data security, transport, and backup. Its removable mounting bracket allows for use in either 5.25" or 3.5" drive bays.
PRODUCT INFORMATION
Technical Specs
| Product Name | DE50 IDE |
| Drive Bus | SATA |
| Host (I/O) Ports | (1) IDE: up to 133 MB/s |
| Drive Types Supported | PATA/IDE 2.5" drives |
| Host Bay Size | 3.5in |
| Insertion Rating | up to 25,000 carrier insertions |
| Number of bays | 1 |
| Lockable Bays | Yes |
| Number of LEDs | 1 |
| Description of LEDs | Seven segment display with drive activity indicator |
| Construction material(s) | Durable metal and ABS construction |

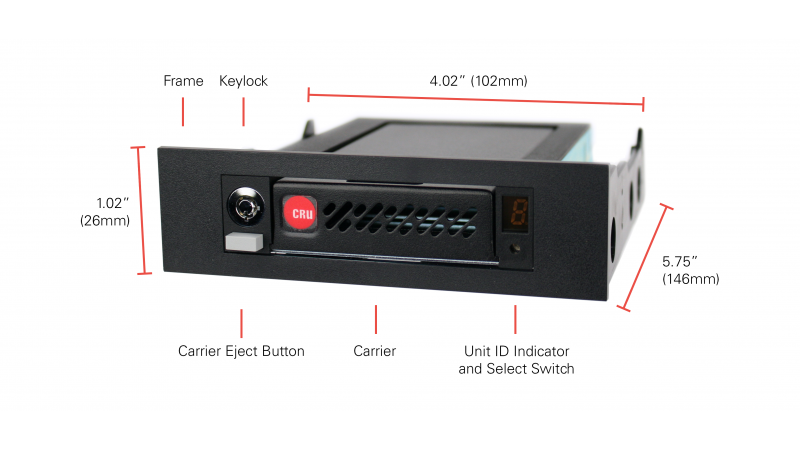

| Dimensions | 5.75" x 4.02" x 1.02" (146mm x 102mm x 26mm) |
| Weight | 1.60 lbs. (0.73 kg) |
| Compliance | FCC, CE, RoHS |
| Warranty | CDSG provides a 3-year limited warranty for this product. |
| Technical Support | Your investment our product is backed up by our free technical support for the lifetime of the product. If you need to contact us for any reason, visit our website. |
Resources & Documents
Nov 22, 2013 - 449.3 KB
Product Description
Government agencies, digital cinemas, and SMB organizations that need a reliable and versatile removable drive enclosure to store, transport, and protect their sensitive data rely on the Data Express® DE50 IDE carrier and frame. This removable enclosure receives any capacity 2.5-inch IDE/PATA hard drives.
Soft start circuitry improves reliability and protects data by eliminating in-rush current during spin-up.
Metal construction dissipates heat and ensures the safety of your drives.
DE50 connectors are tested and verified for over 25,000 insertions.
Additional features:- Power keylock
- Power and drive activity LEDs
- Mounting hardware
- Connector alignment pins
- Unit select switch
- 3-year warranty
- Free lifetime phone tech support
DE50 IDE removable drive carriers and frames will provide you with reliable performance while protecting your data.
Related Products
Compact and rugged removable drive enclosure for 2.5-inch SAS/SATA 6G drives
Learn More>
Products and Accessories

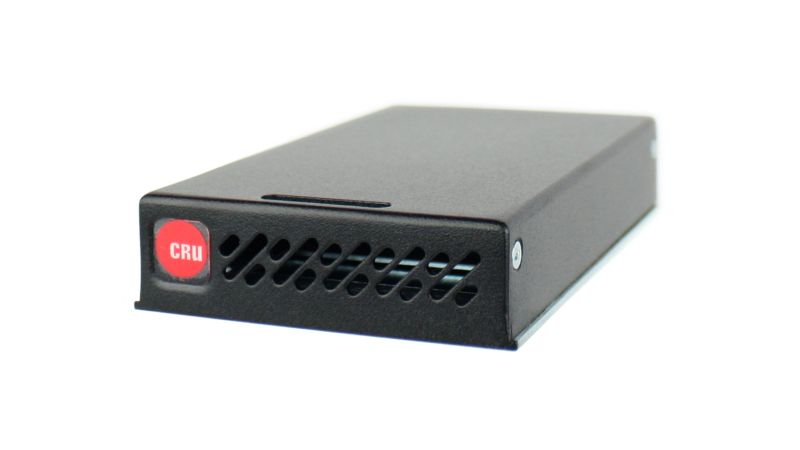

Carrier for DE50 IDE
Accepts 2.5in IDE (PATA) HDD; ATA133
| Black |
| part #: 6417-0000-0500 |
| Black; with open cover |
| part #: 6417-0001-0500 |
| White |
| part #: 6417-0000-0000 |
DE50 IDE Complete Assembly
Includes carrier for 2.5in IDE (PATA) HDD; ATA133
| Black |
| part #: 6416-0000-0500 |
| White |
| part #: 6416-0000-0000 |

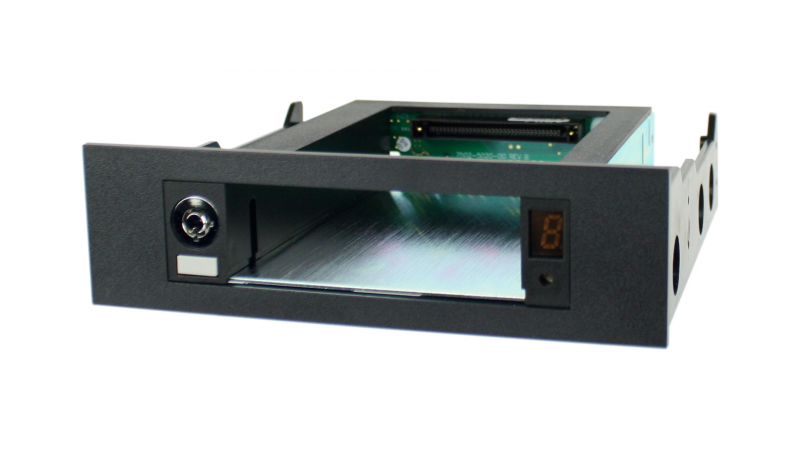

DE50 IDE Frame Only
Works with DE50 IDE carriers; ATA133
| White |
| part #: 6418-0000-0000 |
Accessories
Extra Keys, 2036 type
For Data Express and QX receiving frames with standard barrel locks
| 3-pack | |
| part #: A98-0000-1093 | Ships in: 1-2 Days |
